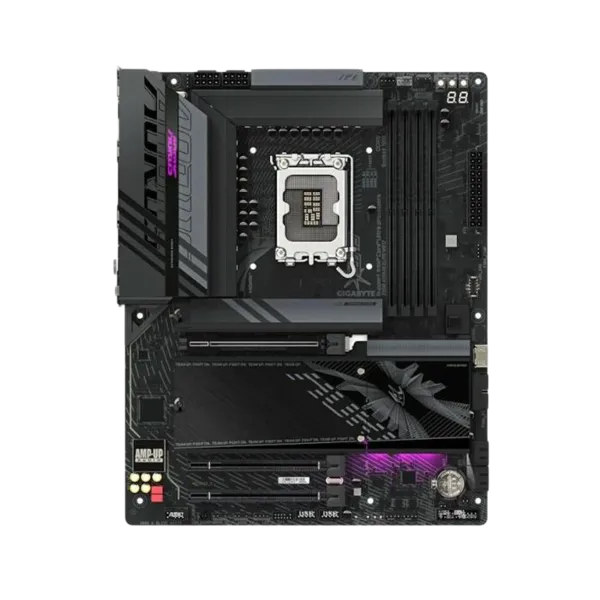

GIGABYTE Z890 AORUS ELITE WIFI7

CPU
- LGA1851 socket: Support for Intel Core Ultra Processors
- L3 cache varies with CPU

Chipset
- Intel Z890 Express Chipset

Memory
- Support for DDR5
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture

Onboard Graphics
- 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio
- Realtek ALC1220 CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support)
- 4 x SATA 6Gb/s connectors
