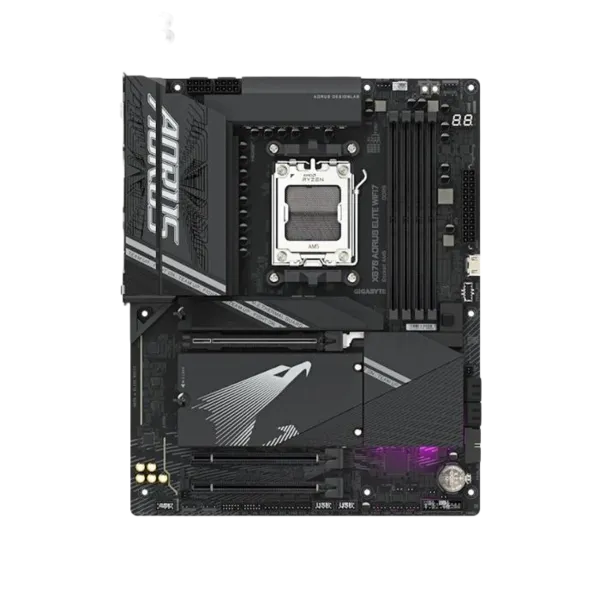

GIGABYTE X870 AORUS ELITE WIFI7

CPU
- AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/
AMD Ryzen 8000 Series Processors/
AMD Ryzen 7000 Series Processors

Chipset
- AMD X870

Memory
- Support for DDR5
- 4 x DDR5 DIMM sockets supporting up to 256 GB
- Dual channel memory architecture

Onboard Graphics
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Audio
- Realtek ALC1220 CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel

LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software

Operating System
- Support for Windows 11 64-bit

Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
