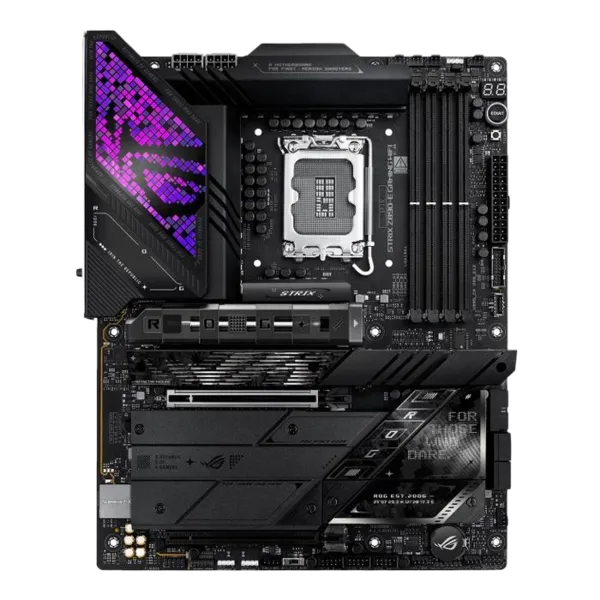

ASUS ROG Strix Z890-E Gaming WiFi

CPU
- Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2)
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Chipset
- Intel Z890 Chipset

Memory
- 4 x DIMM slots, max. 256GB, DDR5
- Dual Channel Memory Architecture

Graphics
- 1 x DisplayPort**
- 1 x HDMI port***
- 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs****

Expansion Slots
Intel Core Ultra Processors(Series 2)*
- 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
- Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*

Ethernet
- 1 x Realtek 5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth v5.4***

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

Operating System
- Windows 11 (22H2 & later)

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
