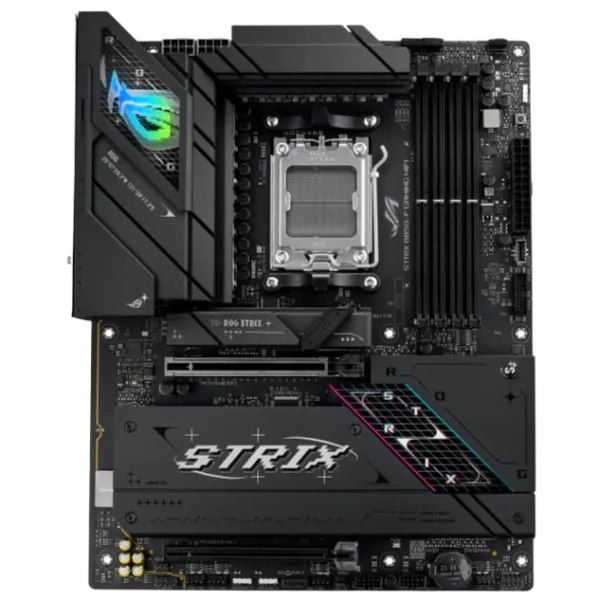

ASUS ROG STRIX B850-F GAMING WIFI

CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to asus/support/download-center/ for CPU support list.

Chipset AMD B850 Chipset

Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit asus/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort*
1 x HDMI port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
* PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to asus/support/download-center/ for the list of supported peripherals.
Storage Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)***
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
** Specifications vary by CPU types.
*** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

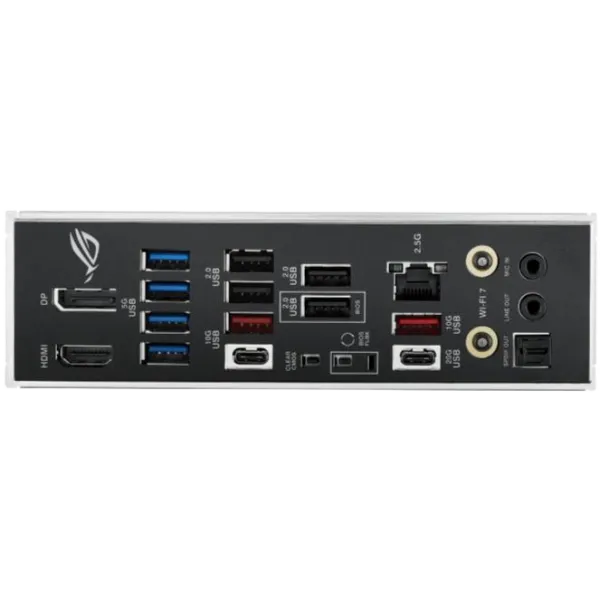

Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
