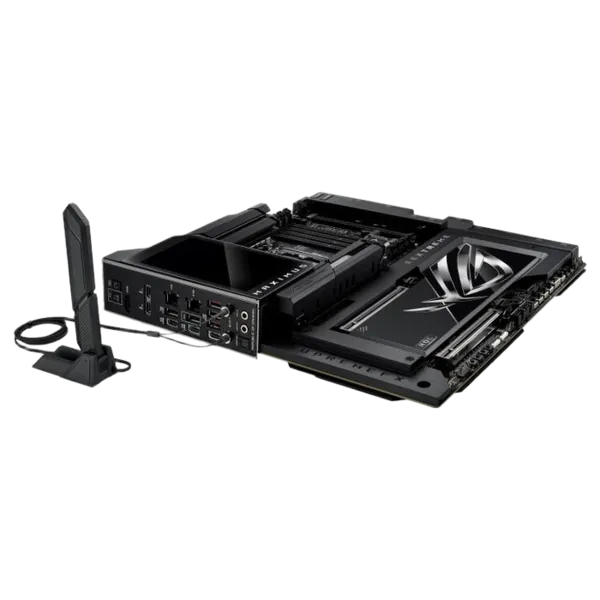

ASUS ROG Maximus Z890 HERO BTF

CPU
- Support Intel Core Ultra Processors (Series 2) , LGA1851*
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Chipset
- Intel Z890 Chipset

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual channel memory architecture
- Supports Intel Extreme Memory Profile (XMP) memory module

Graphics
- 1 x HDMI port**
- 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***

Expansion Slots
Intel Core Ultra Processors (Series 2)*
- 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel Z890 Chipset
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 4.0 x1 slot


Storage
- Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Intel 2.5Gb Ethernet
- 1 x Realtek 5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth v5.4***

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"

Accessories
Cables
- 1 x ARGB RGB extension cable
- 4 x SATA 6Gb/s cables
Additional Cooling Kit
- 1 x DDR5 fan holder
- 1 x Thermal pad for M.2 22110
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-connector
- 3 x M.2 Q-Slide packages
- 1 x ROG stickers
- 6 x M.2 rubber packages
- 1 x ROG thank you card
- 1 x ROG Bottle Opener
Installation Media
- 1 x USB drive with utilities and drivers
Documentation
-1 x Quick start guide

Operating System
- Windows 11 (22H2 & later)

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
