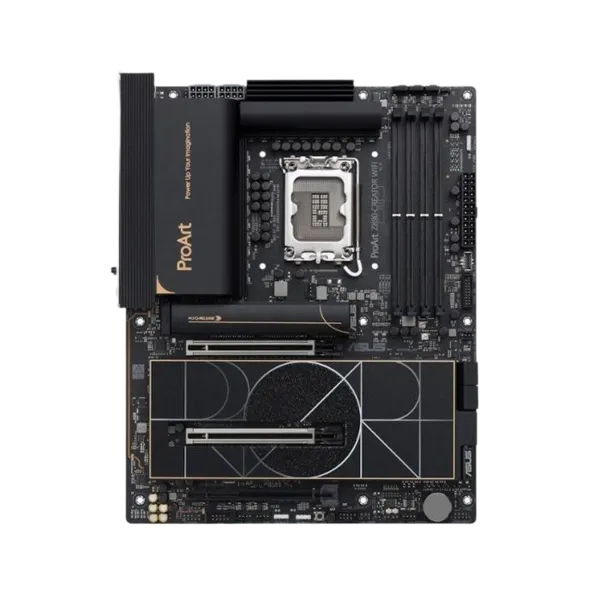

ASUS ProArt Z890-Creator WiFi

Model
- ProArt Z890-CREATOR WIFI

CPU
- Support Intel Core Ultra Processors (Series 2), LGA1851
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Chipset
- Intel Z890 Chipset

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual channel memory architecture
- Supports Intel Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)

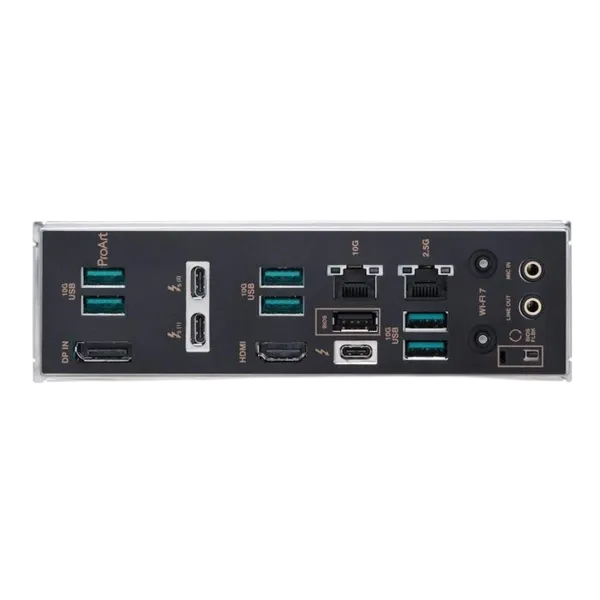

Graphics
- 1 x HDMI port**
- 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***
- 1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****

Expansion Slots
Intel Core Ultra Processors (Series 2) *
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel Z890 Chipset
- *1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
- Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Marvell AQtion 10Gb Ethernet
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth v5.4***
