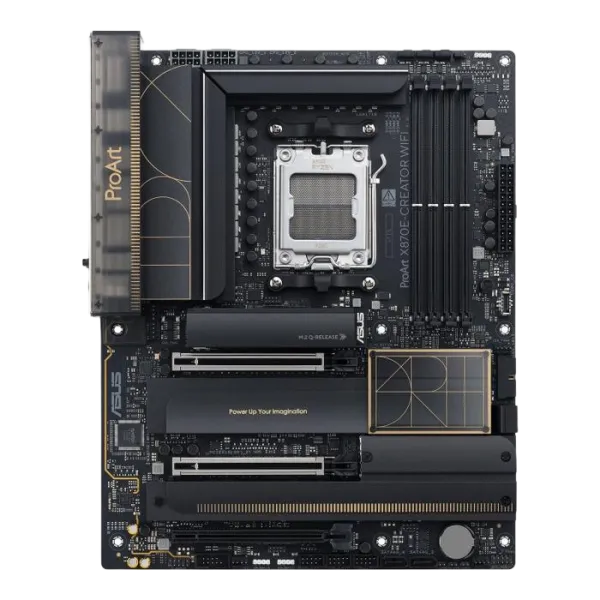

ASUS ProArt X870E-CREATOR WIFI

Model
- ProArt X870E-CREATOR WIFI

CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

Chipset
- AMD X870E

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual Channel Memory Architecture

Graphics
- 1 x HDMI port**
- 2 x USB4 (40Gbps) ports support USB Type-C display outputs***

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors*
- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4,

Storage
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet
- 1 x Marvell AQtion 10Gb Ethernet
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
- Bluetooth v5.4***


Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

Accessories
Cables
- 1 x DisplayPort cable
- 4 x SATA 6Gb/s cables
Additional Cooling Kit
- 1 x Thermal pad for M.2 22110
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-connector
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Latch Q-Slide package for M.2 backplate
- 2 x Rubber Packages for M.2
- 1 x ProArt ruler
Documentation
- 1 x Quick start guide
- 1 x ACC Express Activation Key Card

Operating System
- Windows 11

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
